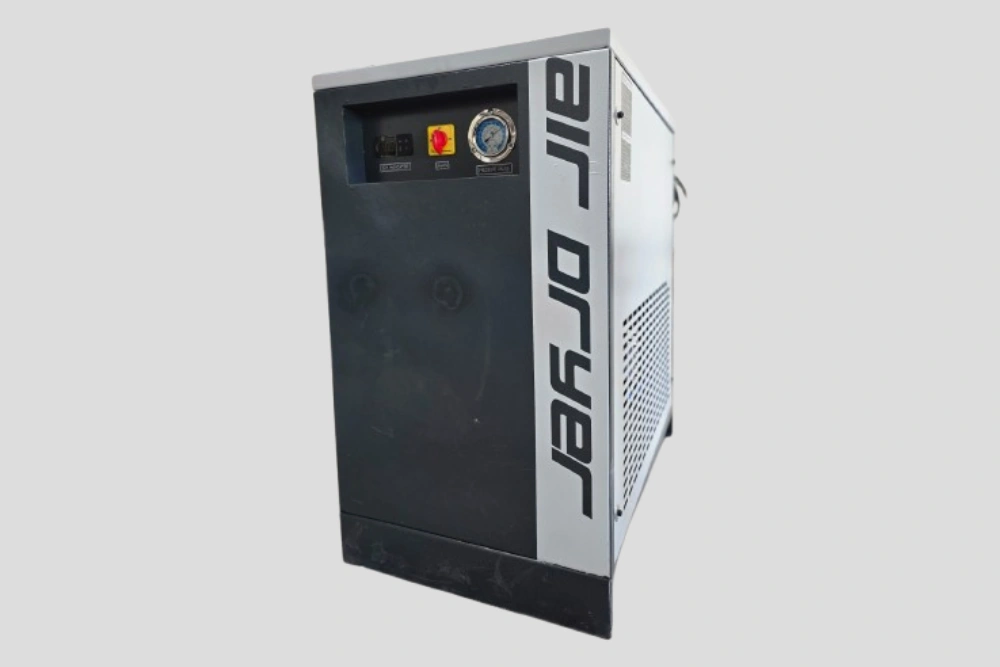

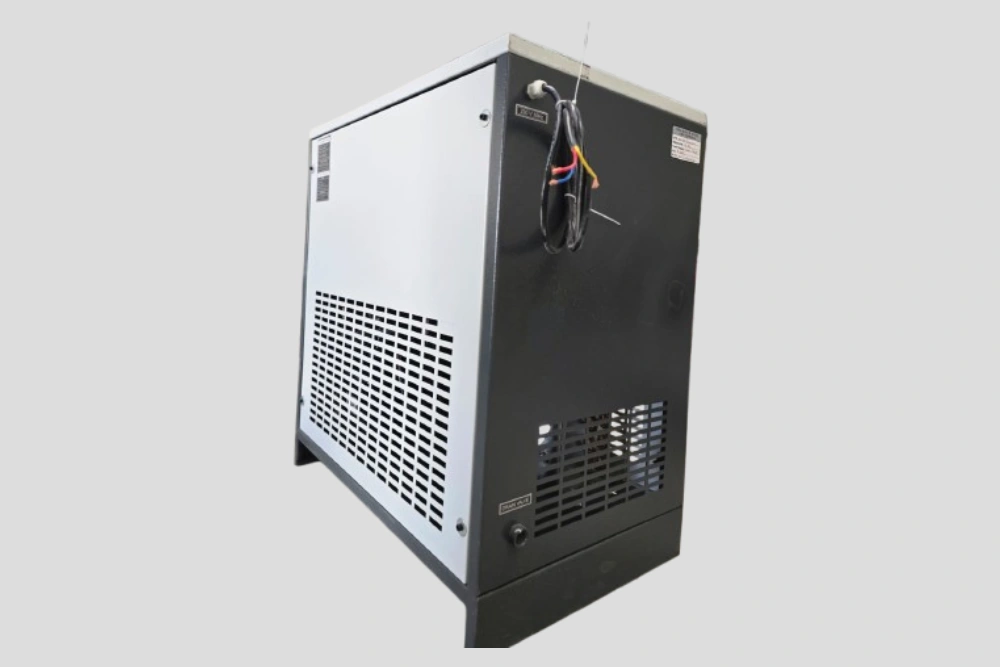

Kenox High-Pressure Air Dryer: Technical Overview
Product Overview
Kenox Air is a premier manufacturer and exporter of High-Pressure Air Dryers (up to 50 bar / 725 psi and higher). These specialized units are constructed with reinforced components to reliably withstand extreme operating pressures, efficiently removing moisture via a robust heat exchange process. Our commitment is to deliver dry compressed air that safeguards your critical equipment from corrosion and catastrophic failure in the most demanding environments.
What is Dew Point in High-Pressure Systems?
The Dew Point must be tightly controlled in high-pressure applications because compression increases moisture concentration. Kenox High-Pressure Dryers are engineered to guarantee a stable Pressure Dew Point, ensuring no liquid condensation occurs downstream. This is essential for protecting expensive systems like boosters, PET blowing machinery, and laser cutting equipment.
How Does the High-Pressure Dryer Work?
Our reinforced refrigerated drying cycle uses a specialized, high-integrity heat exchanger capable of handling the flow and force of high-pressure air. The air is meticulously cooled, causing maximum water vapor to condense. This liquid is then reliably expelled via an automatic valve, guaranteeing consistent ISO Air Quality even under peak loads.
Specialized Features for Extreme Conditions
- Reinforced Heat Exchanger: Features high-strength, non-corrosive construction specifically designed to safely withstand and manage extreme internal pressures (up to 50 bar).
- Integrated Moisture Separation: Incorporates a robust Centrifugal Moisture Separator optimized for efficient liquid removal in high-velocity, high-pressure flows.
- High-Pressure Auto Drain: Utilizes a heavy-duty, electronic (Digital) timer-operated Auto Drain Valve rated for high-pressure service, ensuring zero air loss and reliable condensate discharge.
- OZONE Friendly Refrigerants: Filled with environmentally compliant, OZONE Friendly refrigerants (R-134a, R-410A, or R-407C) that perform reliably under all operating conditions.
- Reliable Performance: Features a stable, non-cyclic refrigeration system with hot gas bypass for maintaining a consistent dew point regardless of load fluctuations or high ambient temperatures.
| Operating Parameters | |||
|---|---|---|---|
| Ideal | Minimum | Maximum | |
| Inlet Air Temperature (°C) | 45 | 10 | 60 |
| Ambient Temperature (°C) | 40 | -5 | 50 |
| Inlet Air Pressure (bar g) | 7 | 2 | 16 |
| Pressure Dew Point (°C) | 3 | 3 | 10 |
| Inlet Air Temperature, L1 | |
|---|---|
| 30 | 1.61 |
| 35 | 1.38 |
| 40 | 1.22 |
| 45 | 1.00 |
| 50 | 0.76 |
| 55 | 0.60 |
| 60 | 0.49 |
| Ambient Temperature, L2 | |
|---|---|
| 25 | 1.61 |
| 30 | 1.38 |
| 35 | 1.22 |
| 40 | 1.00 |
| 45 | 0.76 |
| 50 | 0.60 |
| 55 | 0.49 |
| Inlet Air Pressure (bar g) | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 14 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Correction Factor L3 | 0.54 | 0.66 | 0.76 | 0.87 | 1.00 | 1.17 | 1.26 | 1.17 | 1.38 | 1.51 | 1.65 |
| Pressure Dew Point (°C) | 3 | 5 | 7 | 10 |
|---|---|---|---|---|
| Conversion Factor L4 | 1.00 | 1.14 | 1.24 | 1.39 |
Specifications:
- Compact Design
- Low Pressure Drop
- Consistent Dew Point
- Power Saving
- High Quality Finishing
- Ease Of Installation
- Environment Friendly
| Compressor Capacity (cfm) | 300 | 1000 |
| Inlet Air Temperature (°C) | 50 | 40 |
| Ambient Temperature (°C) | 45 | 30 |
| Inlet Air Pressure (bar g) | 7 | 10 |
| Pressure Dew Point (°C) | 3 | 3 |
| Multiplication of CF | 0.8 × 0.93 × 1 × 1 = 0.74 | 1.21 × 1.14 × 1.25 × 1 = 1.724 |
| Dyer Nominal Capacity (cfm) | 403 | 550 |
| Model to be chosen | LU 040 AD | LU 060 AD |
| Sr. No | Model | Nominal Capacity | Electrical Connection | Rated Power (kW) | ||
|---|---|---|---|---|---|---|
| cfm | m³/h | 1-ph | 3-ph | |||
| 1 | RAS-002 | 20 | 34 | ✔ | 0.15 | |
| 2 | RAS-004 | 40 | 68 | ✔ | 0.20 | |
| 3 | RAS-006 | 60 | 102 | ✔ | 0.40 | |
| 4 | RAS-008 | 80 | 136 | ✔ | 0.50 | |
| 5 | RAS-010 | 100 | 170 | ✔ | 0.60 | |
| 6 | RAS-015 | 150 | 255 | ✔ | 0.90 | |
| 7 | RAS-020 | 200 | 340 | ✔ | 1.20 | |
| 8 | RAS-025 | 250 | 425 | ✔ | 1.40 | |
| 9 | RAS-030 | 300 | 510 | ✔ | 1.60 | |
| 10 | RAS-040 | 400 | 680 | ✔ | 1.90 | |
| 11 | RAS-050 | 500 | 850 | ✔ | 2.30 | |
| 12 | RAS-060 | 600 | 1020 | ✔ | 2.80 | |
| 13 | RAS-070 | 700 | 1189 | ✔ | 3.70 | |
| 14 | RAS-080 | 800 | 1360 | ✔ | 4.20 | |
| 15 | RAS-100 | 1000 | 1699 | ✔ | 5.00 | |
| 16 | RAS-120 | 1200 | 2039 | ✔ | 5.45 | |
| 17 | RAS-150 | 1500 | 2550 | ✔ | 6.80 | |
